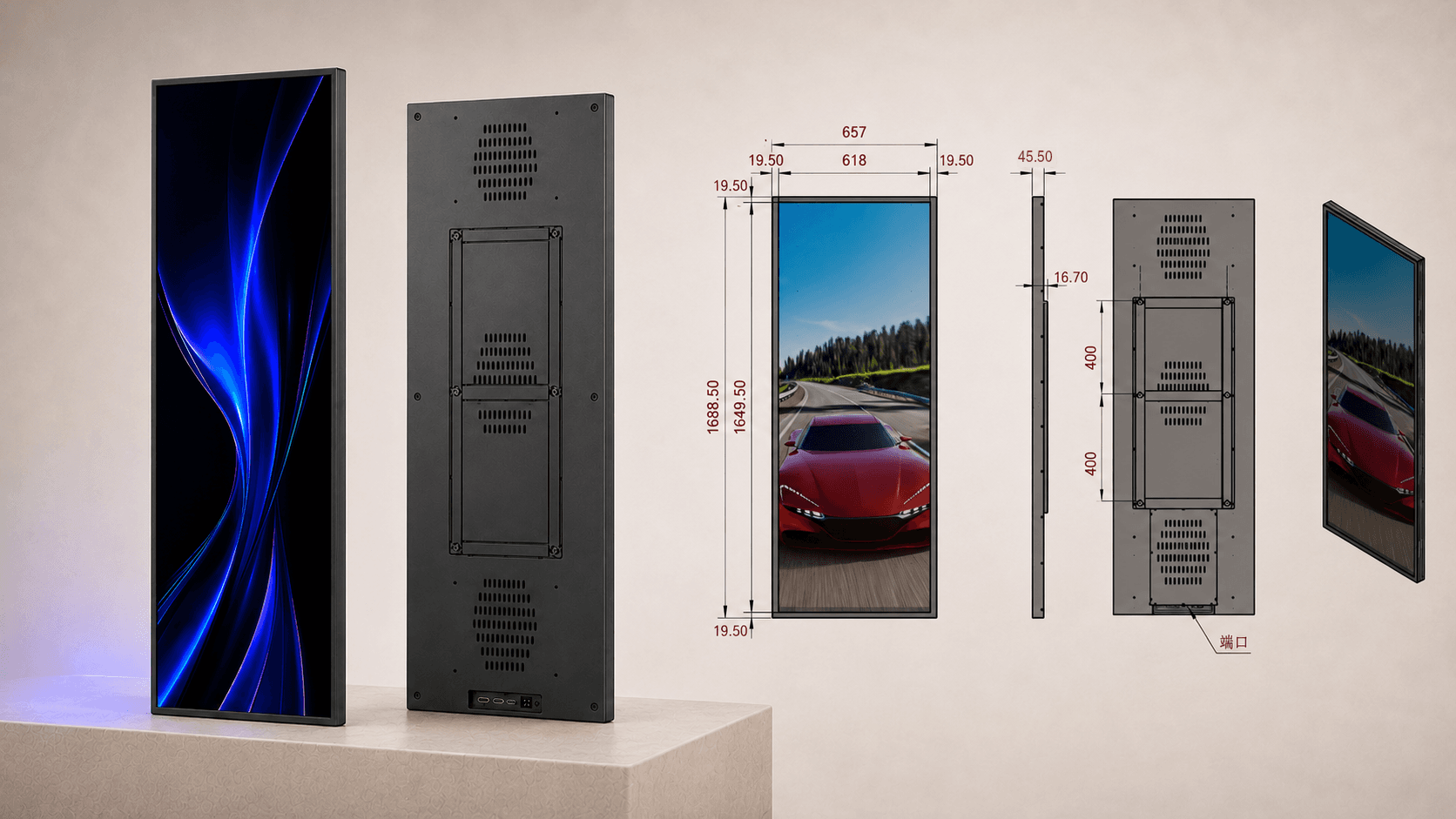

69.3-inch Stretched Bar LCD Display
An extra-large ultra-wide LCD display solution for public information displays, digital signage and specialized OEM projects.
Product Overview
Developed around your application.
The 69.3-inch Stretched Bar LCD Display provides a large-format ultra-wide display solution for public information systems, digital signage and customized commercial applications.
69.3-inch extra-large display formatHigh-impact digital signagePublic information system integrationOEM & ODM customization support
Specifications
A technical platform configured for the project
Final specifications are confirmed after engineering review, application evaluation and prototype validation.
| Display Size | 69.3 inch |
| Model Number | ZF693VDZ-LE1 |
| Active Display Area | 1649(H) × 618(V) mm |
| Outline Dimension | 1668(H) × 657(V) × 45.5(D) mm |
| Resolution | 3840 × 1440 |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 |
| Viewing Direction | Full Viewing Angle |
| Mainboard | T972 |
| Operating System | Android 9.0 |
| CPU | T972 Quad-core A55, up to 1.9GHz |
| Memory | 4GB + 32GB |
| Display Interface | Extended SD card ×1, RJ45 port ×1, HDMI output ×1, USB port ×2 |
| Input | Standard Android keyboard, supports third-party input methods |
| Language | Supports Chinese, English and other languages |
| Refresh Rate | 60Hz |
| Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
Applications
Built for high-impact visual communication systems
Digital signage networksTransportation displaysCommercial advertising systemsSmart public facilities
Customization
Advanced customization for complex applications
Ultra-wide display configurationBrightness enhancementMechanical structure designHardware and software integration
Project Support
Complete support from concept to production
We provide OEM and ODM support including engineering review, prototype development, testing and production management for customized large-format display solutions.
