LCD Display Solution

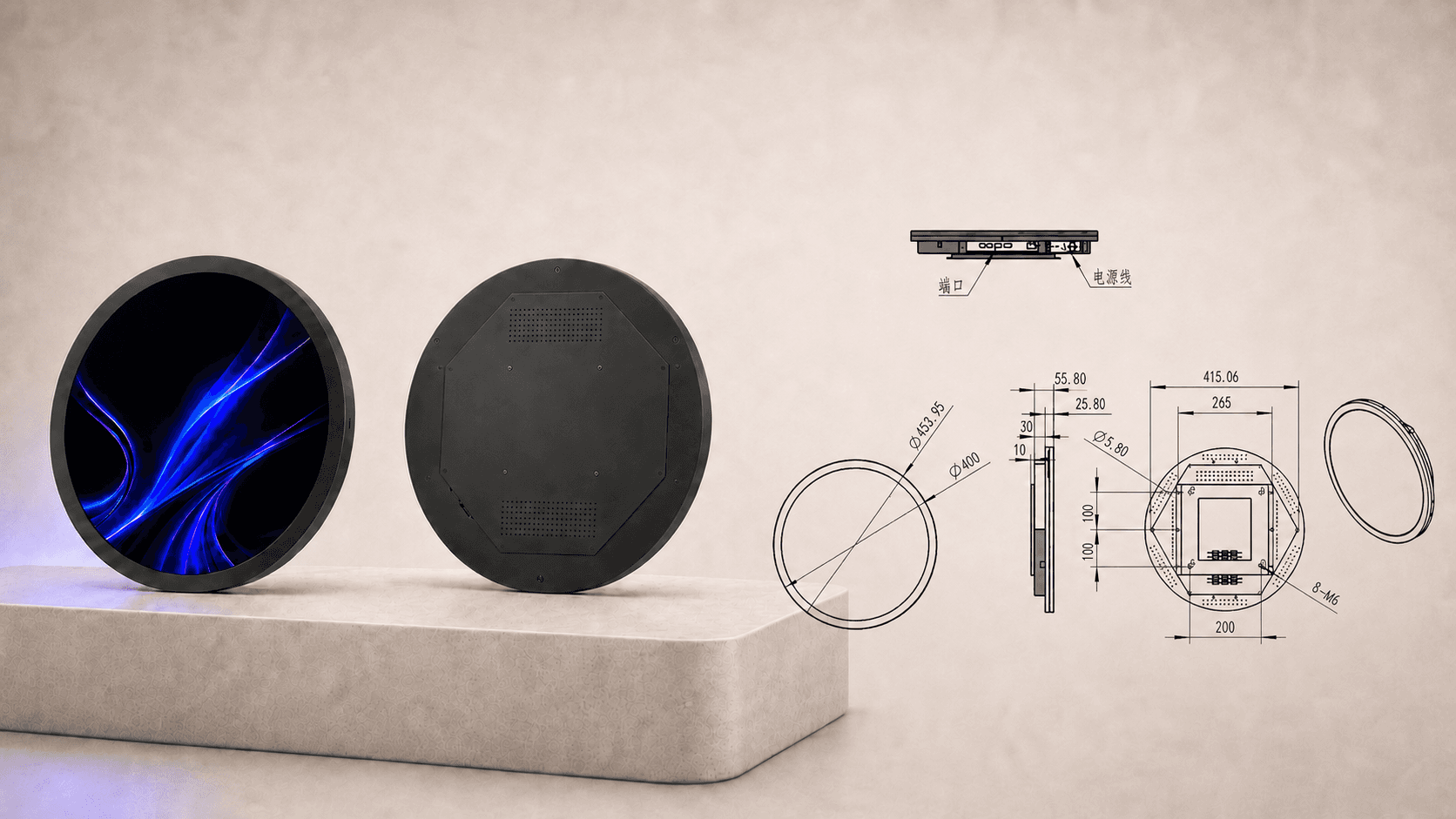

15.7-inch Round LCD Display
A circular LCD display solution designed for smart devices, interactive equipment, retail displays and customized applications.
Product Overview
Developed around your application.
The 15.7-inch Round LCD Display offers a unique circular display design for smart devices, interactive equipment, retail displays and customized applications.
15.7-inch circular display formatSmart device integrationInteractive and retail applicationsOEM & ODM customization support
Specifications
A technical platform configured for the project
Final specifications are confirmed after engineering review, application evaluation and prototype validation.
| Display Size | 15.7 inch |
| Model Number | ZF157AJ1-TE1 |
| Active Display Area | 400.032(H) × 400.032(V) mm |
| Outline Dimension | 452.95(H) × 452.95(V) × 30.2(D) mm |
| Resolution | 960 × 960 |
| Brightness | 700 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Viewing Direction | Full Viewing Angle |
| Mainboard | RK3568 |
| Memory | 4GB + 32GB |
| Refresh Rate | 60Hz |
| Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
Applications
Designed for creative circular display applications
Smart devicesInteractive equipmentBrand showcase displaysCustomized commercial products
Customization
Flexible design options for unique products
Custom circular dimensionsTouch integrationHousing developmentInterface customization
Project Support
Supporting innovative display product development
We work with customers from early concept design through prototype verification and production, providing customized round display solutions for unique applications.
